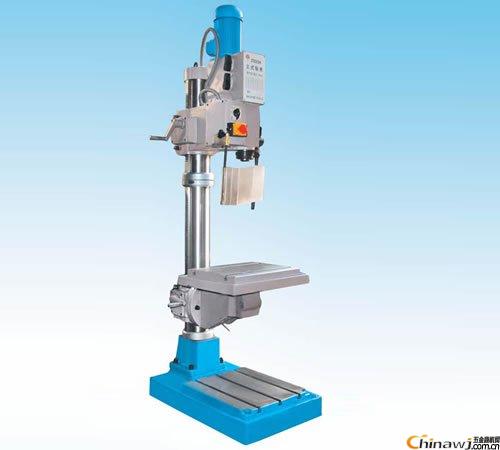

Z5025A 立式钻床
Z5025A立式钻床
| 最大钻孔直径Drilling capacity(mm) | 25 |
| 主轴最大行程Max.spindle travel(mm) | 140 |
| 主轴锥孔 Taper of spindle | MT3 |
| 主轴变速范围(8级)Spindle speeds range(8 steps) | 100-2900 |
| 主轴中心至立柱表面距离Distance spindle axis to column (mm) | 315 |
| 主轴端至工作台面最大距离Max. Distance spindle nose to worktable(mm) | 660 |
| 工作台托架最大行程 Max travel of the supporting block of working table (mm) | 480 |
| 主轴端面至底座最大距离Max. Distance from spindle nose to working surface of base plate(mm) | 1200 |
| 工作台尺寸Dimension of worktable table(mm) | 315×415 |
| 底座工作面尺寸 Dimension of effective working area of base plate(mm) | 475×400 |
| 电动机功率Motor power(kw) | 0.75/0.55 |
| 钻床外型尺寸Overall dimension (mm) | 788×560×1820 |
